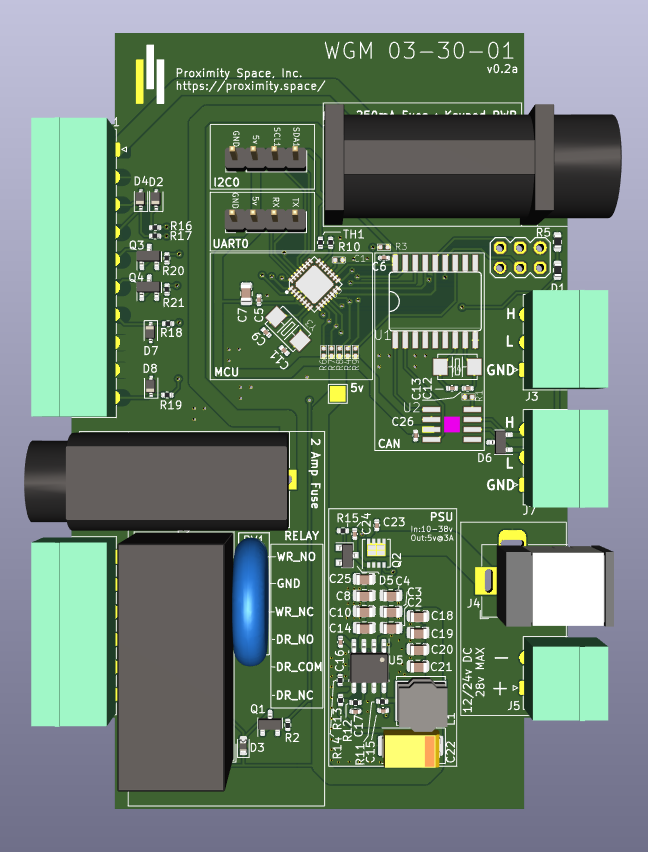

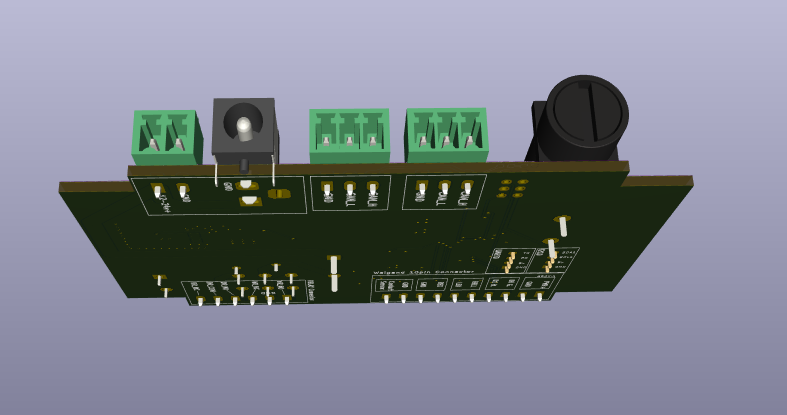

Proximity Open WGM Hardware
15 April 2021
Build of Materials
| Query | Qty | Manufacturer | MPN | URL | Part Description | Description |
|---|---|---|---|---|---|---|

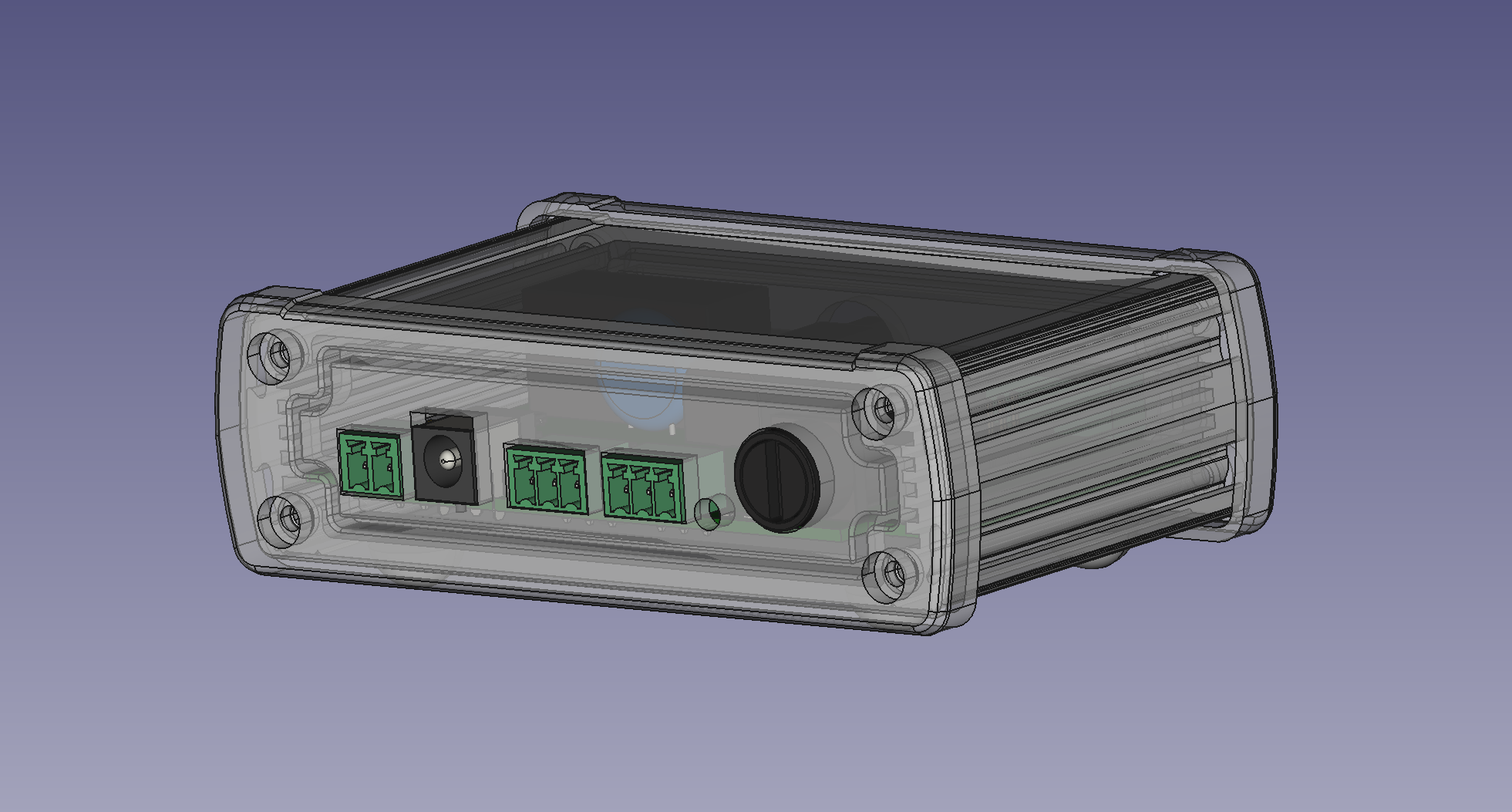

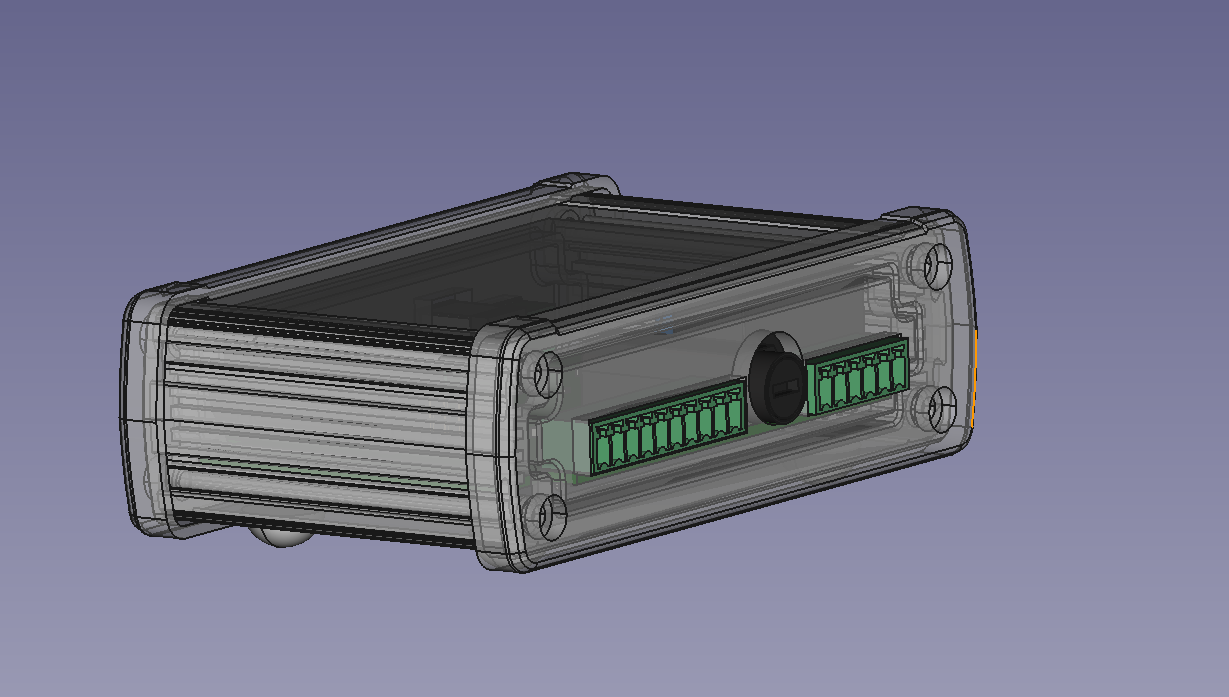

| EX53-01 | 1 | PolyCase | EX53-01 | POLY CASE EX53-01 | ||
| RT0402FRE0720KL | 1 | Yageo | RT0402FRE0720KL | https://octopart.com/rt0402fre0720kl-yageo-1412788 | Res Thin Film 0402 20K Ohm 1% 1/16W ±50ppm/°C Molded SMD SMD Paper T/R | R_0402_1005Metric |
| RT0402FRE0710RL | 1 | Yageo | RT0402FRE0710RL | https://octopart.com/rt0402fre0710rl-yageo-1425932 | Res Thin Film 0402 10 Ohm 1% 0.063W(1/16W) ±50ppm/C Pad SMD T/R | R_0402_1005Metric |
| CC0402KRX7R9BB122 | 1 | Yageo | CC0402KRX7R9BB122 | https://octopart.com/cc0402krx7r9bb122-yageo-192884 | 0402 1.2 nF 50 V ±10 % Tolerance X7R SMT Multilayer Ceramic Capacitor | C_0402_1005Metric |
| CC0402JRNPO9BN220 | 4 | Yageo | CC0402JRNPO9BN220 | https://octopart.com/cc0402jrnpo9bn220-yageo-39467608 | 0402 22 pF 50 V ±5 % Tolerance NP0 SMT Multilayer Ceramic Capacitor | C_0402_1005Metric |
| AF0402FR-0712KL | 2 | Yageo | AF0402FR-0712KL | https://octopart.com/af0402fr-0712kl-yageo-71370697 | Anti-Sulfurated Chip Resistor Thick Film 0402 12kOhm 1% Paper T/R | R_0402_1005Metric |
| AC0402FR-072K2L | 1 | Yageo | AC0402FR-072K2L | https://octopart.com/ac0402fr-072k2l-yageo-24682183 | Res Thick Film 0402 2.2K Ohm 1% 1/16W ±100ppm/°C Molded SMD Paper T/R | R_0402_1005Metric |
| NTCS0402E3103JL1T | 1 | Vishay | NTCS0402E3103JL1T | https://octopart.com/ntcs0402e3103jl1t-vishay-97432555 | Thermistor NTC 10K Ohm 5% 2-Pin 0402 Surface Mount Solder Pad 3490K -4 to -3.5 T/R Automotive | R_0402_1005Metric |
| SN65HVD251DRG4 | 1 | Texas Instruments | SN65HVD251DRG4 | https://octopart.com/sn65hvd251drg4-texas+instruments-842282 | CAN 1Mbps Shutdown/Standby 5V Automotive 8-Pin SOIC T/R / IC CAN TRANSCEIVER 5V 8-SOIC | SO-08 |
| 839-54-00166-ND | 1 | Tensility | 54-00166 | https://octopart.com/54-00166-tensility-104908117 | Conn Jack R/a Pcb 5.5X2.1MM | BarrelJack_Horizontal |
| CRG0402F4K7 | 3 | TE Connectivity | CRG0402F4K7 | https://octopart.com/crg0402f4k7-te+connectivity-16077266 | Res Thick Film 0402 4.7K Ohm 1% 1/16W ±100ppm/°C Molded SMD SMD | R0402 |
| C2012X5R1V106K085AC | 4 | TDK | C2012X5R1V106K085AC | https://octopart.com/c2012x5r1v106k085ac-tdk-28169086 | C Series 0805 10 uF 35 V ±10 % Tolerance X5R SMT Multilayer Ceramic Capacitor | C_0805_2012Metric |
| C2012X5R1V106K085AC | 7 | TDK | C2012X5R1V106K085AC | https://octopart.com/c2012x5r1v106k085ac-tdk-28169086 | C Series 0805 10 uF 35 V ±10 % Tolerance X5R SMT Multilayer Ceramic Capacitor | C_0805_2012Metric |
| TS4148C RZG | 1 | Taiwan Semiconductor | TS4148C RZG | https://octopart.com/ts4148c+rzg-taiwan+semiconductor-22124138 | Rectifier Diode Small Signal Switching 75V 0.1A 4ns 2-Pin Case 0603(1608Metric) T/R | D_0603_1608Metric |
| 277-6842-ND | 1 | Phoenix Contact | 1920943 | https://octopart.com/1920943-phoenix+contact-2010659 | Pluggable Terminal Blocks 2 Pos 3.5mm pitch Through Hole Header | PhoenixContact_MC_1,5_2-G-3.81_1x02_P3.81mm_Horizontal |
| 277-8967-ND | 2 | Phoenix Contact | 1877164 | https://octopart.com/1877164-phoenix+contact-7857234 | Pluggable Terminal Blocks 3 Pos 3.5mm pitch Through Hole Header | PhoenixContact_MC_1,5_3-G-3.5_1x03_P3.50mm_Horizontal |
| 667-EEF-CX0J101R | 1 | Panasonic | EEF-CX0J101R | https://octopart.com/eef-cx0j101r-panasonic-39481340 | Cap Aluminum 100uF 6.3V 20% (7.3 X 4.3 X 1.9mm) SMD 0.015 Ohm 2700mA 1000h 105C Embossed T/R | CP_EIA-7343-31_Kemet-D |
| LW L283-Q1R2-3K8L-1-Z | 1 | Osram Opto | LW L283-Q1R2-3K8L-1-Z | https://octopart.com/lw+l283-q1r2-3k8l-1-z-osram+opto-31115416 | LED Uni-Color White 2-Pin SMD T/R | R_0603_1608Metric |
| NUP2105LT1GOSCT-ND | 1 | ON Semiconductor | NUP2105LT1G | https://octopart.com/nup2105lt1g-on+semiconductor-1383010 | NUP2105L Series 350 W Dual Line CAN Bus Protector ESD Protection Diode - SOT-23 | SOT-23 |
| MMBZ5255BLT1G | 1 | ON Semiconductor | MMBZ5255BLT1G | https://octopart.com/mmbz5255blt1g-on+semiconductor-331739 | MMBZ5255BL Series 225 mW 10 mA 28 V SMT Zener Voltage Regulator - SOT-23-3 | D_SOT-23_ANK |
| BSS138CT-ND | 3 | SOT-23 | ||||
| G2RL-2-DC5 | 1 | Relay_DPDT_Omron_G2RL | ||||
| BZX384-B5V1,115 | 4 | |||||
| GRM155R62A104KE14D | 1 | C_0402_1005Metric | ||||
| GRM155R62A104KE14D | 7 | C_0402_1005Metric | ||||
| WM7774-ND | 1 | PhoenixContact_MC_1,5_6-G-3.5_1x06_P3.50mm_Horizontal | ||||
| MCP2515-E/SO-ND | 1 | SO18L | ||||
| ATMEGA328P-MURCT-ND | 1 | QFN32G-0.5-5X5MM | ||||
| 1195-6078-ND | 1 | PhoenixContact_MC_1,5_10-G-3.5_1x10_P3.50mm_Horizontal | ||||
| ECS-160-8-30Q-VY-TR | 2 | X2-SMD-5.0X3.2X1.3MM | ||||
| 470R | 4 | R_0402_1005Metric | ||||
| 470R | 1 | R_0603_1608Metric | ||||
| DMP3013SFV-7 | 1 | Diodes_PowerDI3333-8 | ||||
| AP64501SP-13 | 1 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.95x4.9mm_Mask2.71x3.4mm_ThermalVias | ||||
| 10k | 8 | R_0402_1005Metric | ||||
| 708-1898-ND | 2 | Fuseholder_Cylinder-5x20mm_Schurter_FAB_0031-355x_Horizontal_Closed | ||||
| SRN6045TA-3R3Y | 1 | L_Bourns_SRN6045TA | ||||
| MOV-14D330KTRCT-ND | 1 | RV_Disc_D15.5mm_W3.9mm_P7.5mm |
