mIRB with CO2
01 May 2024
3D Model
Introduction
Discover motion and environmental monitoring with MIRB. Featuring the advanced Sensirion SCD4X sensor for CO2, temperature, and humidity measurements. This state-of-the-art tool offers consistent and reliable motion detection using infrared technology, coupled with efficient beacon identification, and is now equipped to provide vital environmental data. Designed to safeguard spaces, oversee assets, and optimize room occupancy and conditions, our device is the ultimate solution for a smarter, safer, and more sustainable environment.
Whether it’s for managing HVAC systems more effectively, reducing energy consumption, or ensuring the well-being of occupants, our enhanced device is your gateway to a practical, tangible, and intelligent monitoring solution. Explore the possibilities of enhanced environmental awareness combined with precise asset tracking and motion detection. Experience the benefits of a device that not only understands movement but also monitors the quality of your indoor environment, making it an indispensable tool for modern living and workspace management.
Flash Update
Specifications
| Part | PiR Sensor | Mounting Style | Beacon Support | Connectivity | Sound Tracking | Release Date |
|---|---|---|---|---|---|---|
| MIRB_2P_US | Panasonic | US 2 Prong | iBeacon | WiFi | - | March 2024 |
| MIRB_C_POE | Panasonic | Ceiling/Wall | iBeacon | Ethernet/PoE | - | TBD/Jan ‘25 |
| MIRB_SOMI1 | (configurable) | Ceiling/Wall | iBeacon | WiFi | 1st Gen | TBD/Jan ‘25 |
Device Features
- All voltage input (AC: 90 ~ 264V)
- Sealed Enclosure, Wireless Design.
- Landmark/Geo Referencing Beacon Placement
- Capture nearby asset traffic
- Capture regional motion activity
- Plug and Play Monitoring Solution
Device Features Continued (SOMI Precision IRB Beacon Models ONLY)
- TBD, in planning!
Device Characteristics
- Wi-Fi Protocols: 802.11 b/g/n (802.11n up to 150 Mbps)
- Test Reliability: HTOL/HTSL/uHAST/TCT/ESD
- RF certification: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
- Bluetooth Protocols: Bluetooth v4.2 BR/EDR and BLE specification
- Bluetooth certification: BQB
- Radio: NZIF receiver with –97 dBm sensitivity, Class-1, class-2 and class-3 transmitter
- Frequency Range: 2.4 GHz ~ 2.5 GHz
Absolute Min/Max
- Ambient Temp: -20～+60℃ (-4～+140°F) - Not for use in freezing or condensation environment
- Storage Temp: -20 ～ +70℃ (-4～+158°F)
- Voltage: 90-264 VAC
- Rating: 100-240 VAC
- Max Input Current: ≤0.2 A
- Max Input Surge: ≤10 A
- Frequency Range: 2.4 GHz ~ 2.5 GHz
Operating Precautions
6. Operating Precautions
6-1 Basic Principles
- PaPIRs is a pyroelectric infrared sensor that detects variations in infrared rays.
- Limitations:
- May not detect in the absence of movement, no temperature change in the heat source.
- Could also detect the presence of heat sources other than a human body.
- Efficiency and reliability vary depending on:
- Detecting heat sources other than the human body, such as:
- Small animals entering the detection area
- When a heat source for example sunlight, incandescent lamp, car headlights etc, or strong light beam hit the sensor regardless inside or outside the detection area.
- Sudden temperature change inside or around the detection area caused by hot or cold wind from HVAC, or vapor from the humidifier, etc.
- Difficulty in sensing the heat source
- Glass, acrylic or similar materials standing between the target and the sensor may not allow a correct transmission of infrared rays,
- Non-movement or quick movements of the heat source inside the detection area.
- Expansion of the detection area
- In case of considerable difference in the ambient temperature and the human body temperature, detection area may be wider apart from the configured detection area.
- Malfunction / Detection error
- Unnecessary detection signal might be outputted, on
- Detecting heat sources other than the human body, such as:

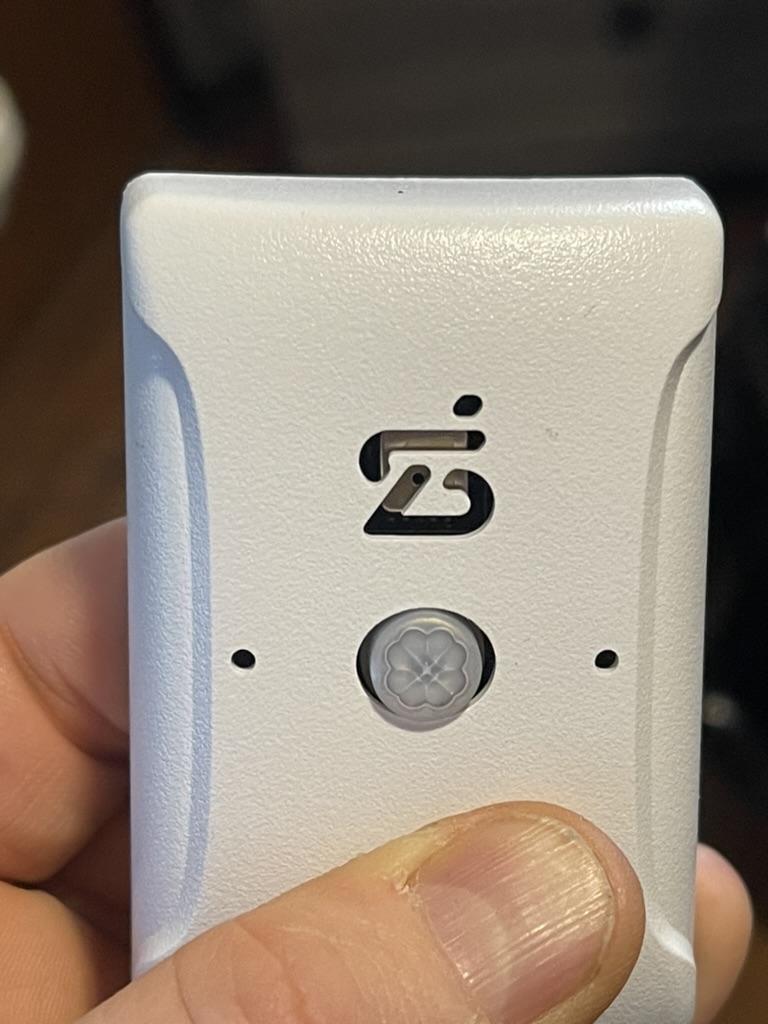

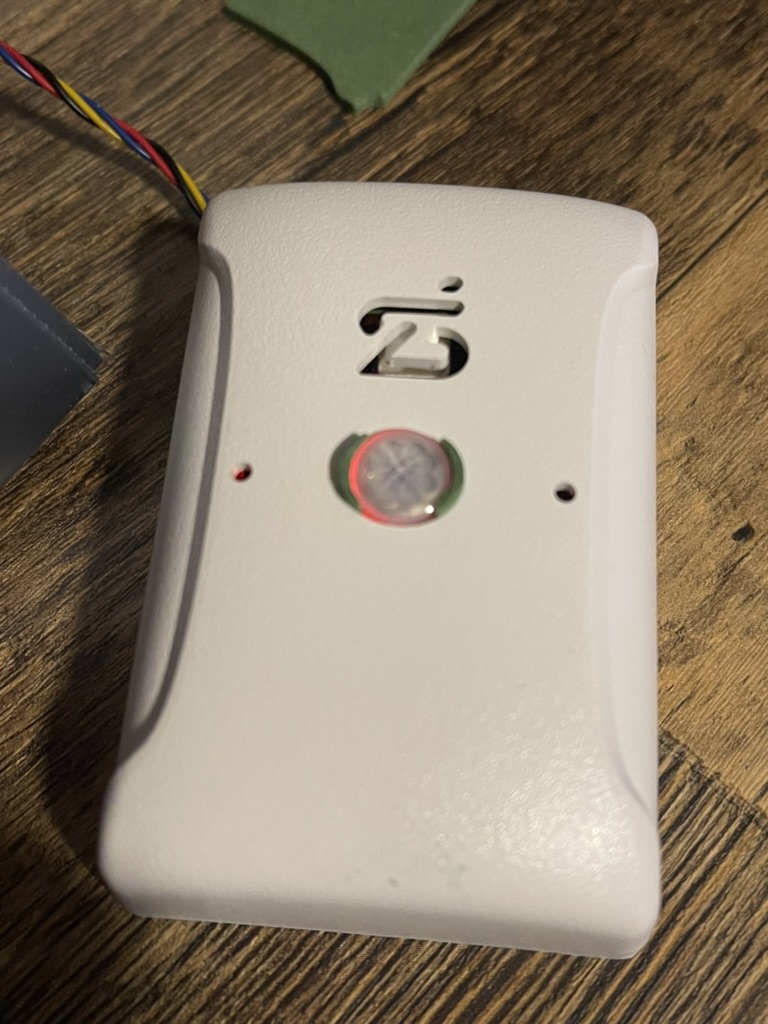

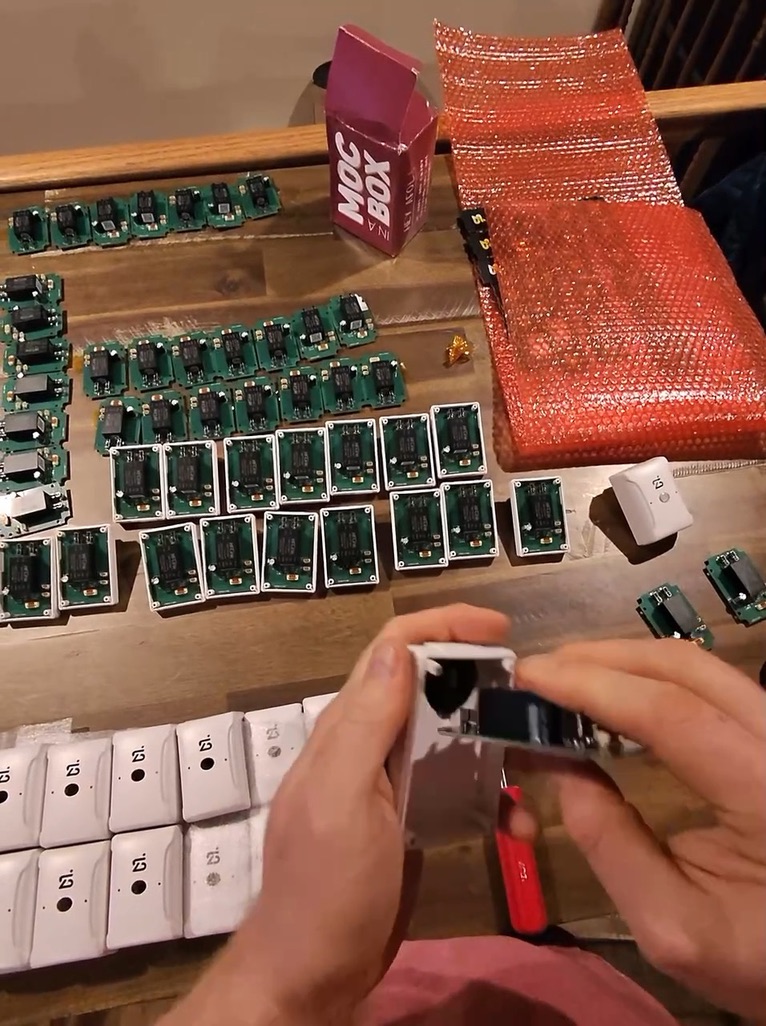

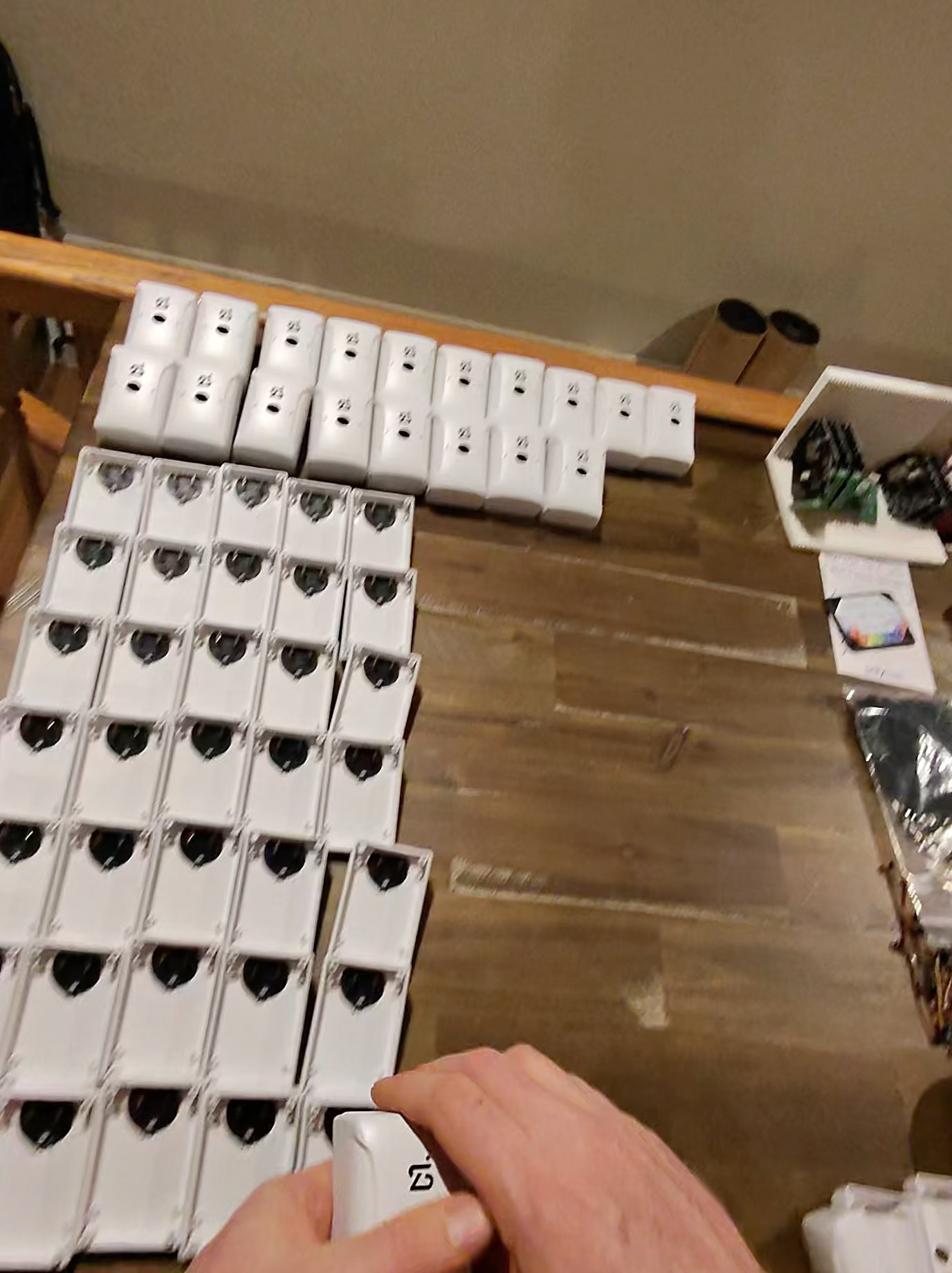

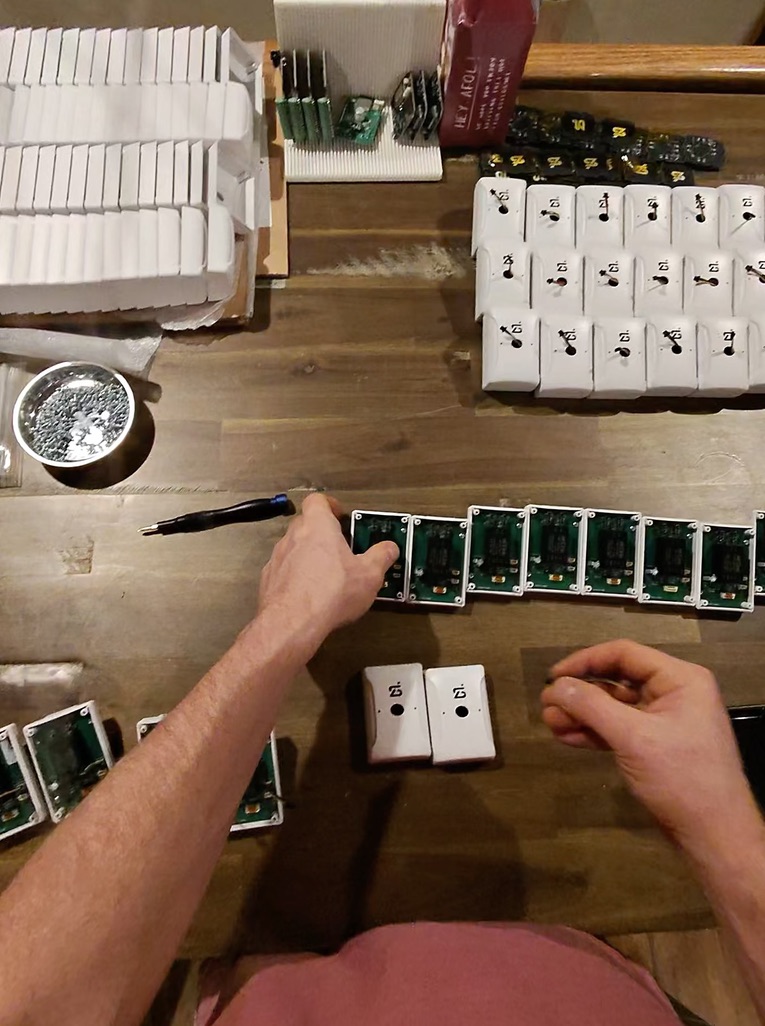

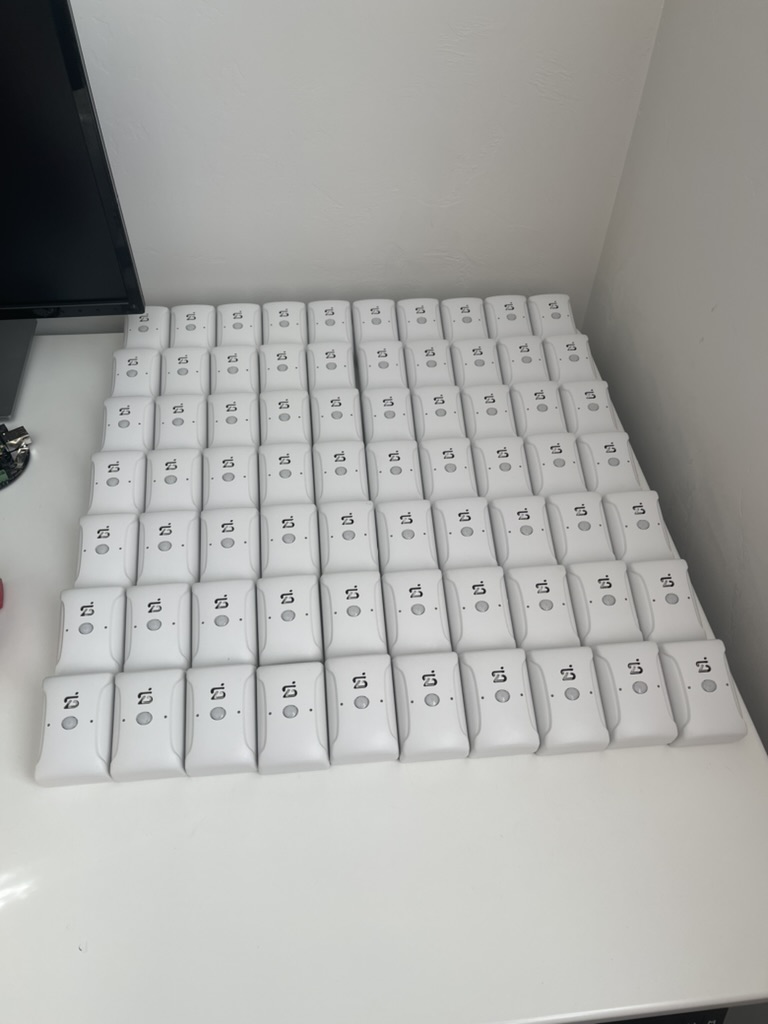

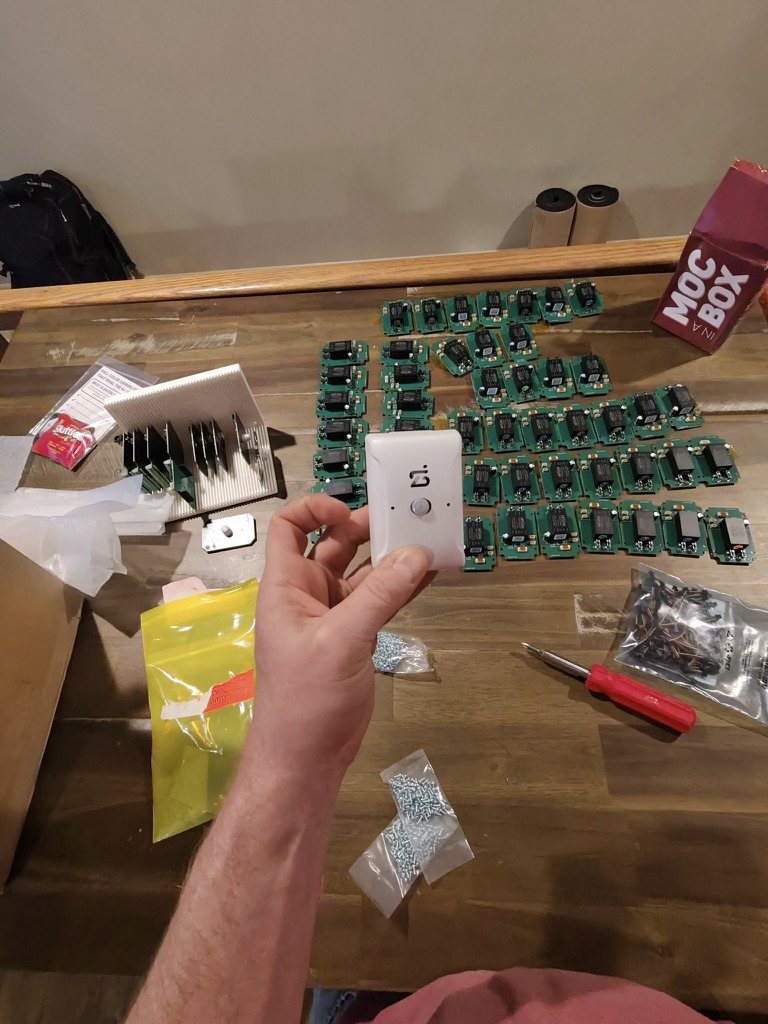

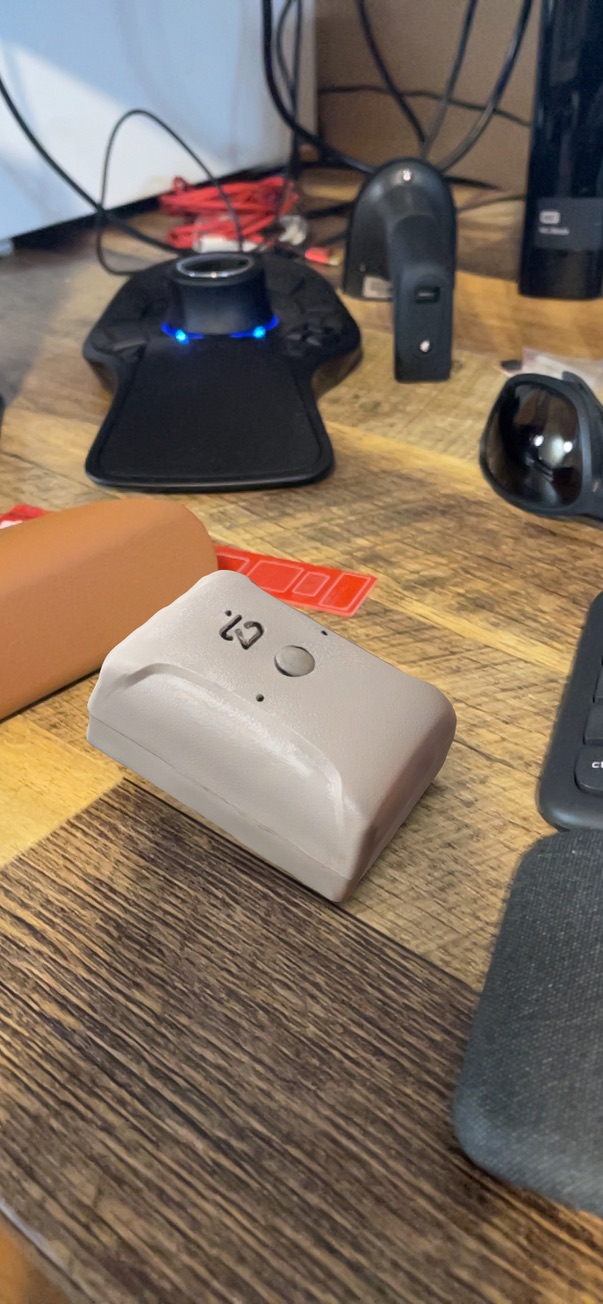

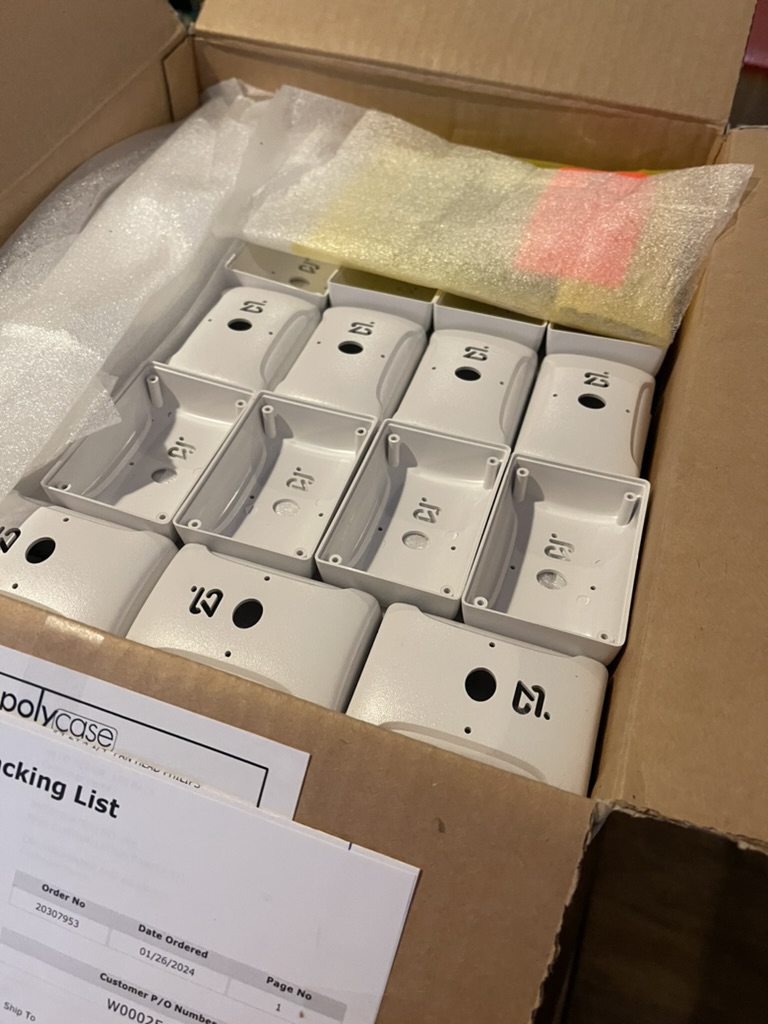

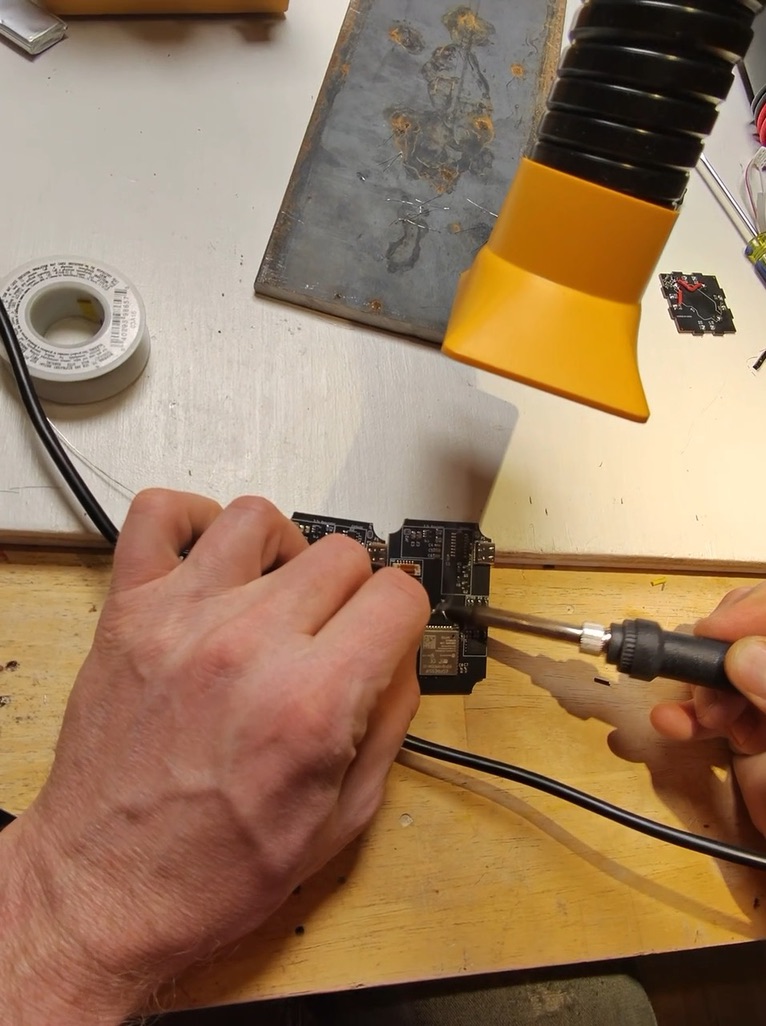

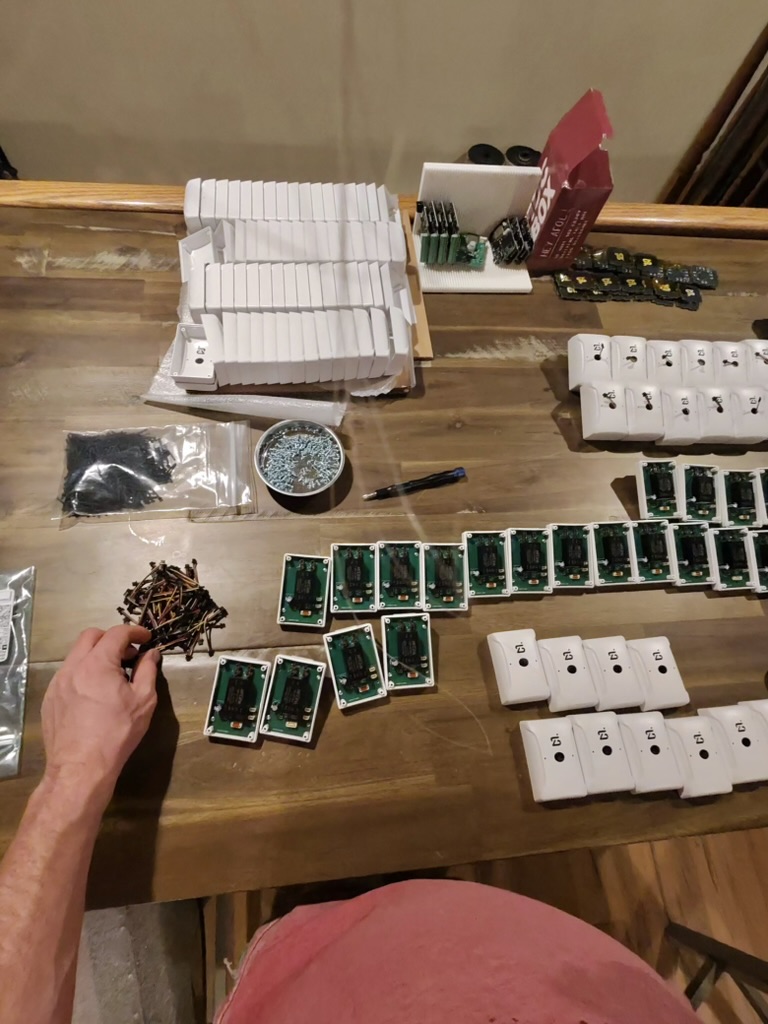

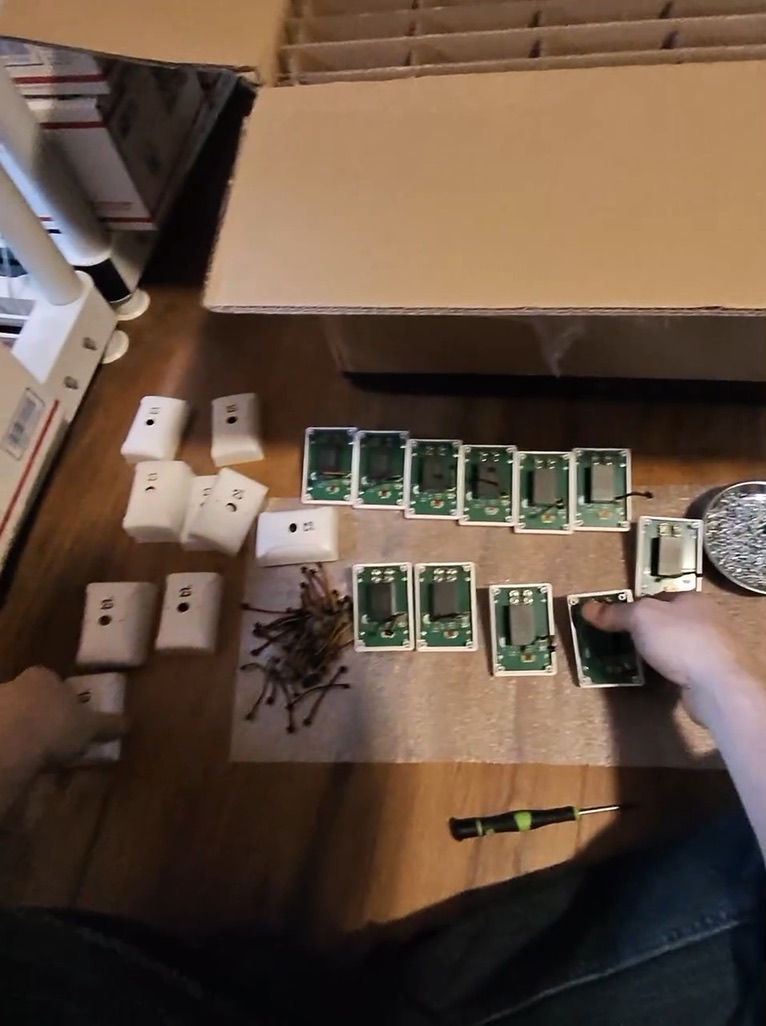

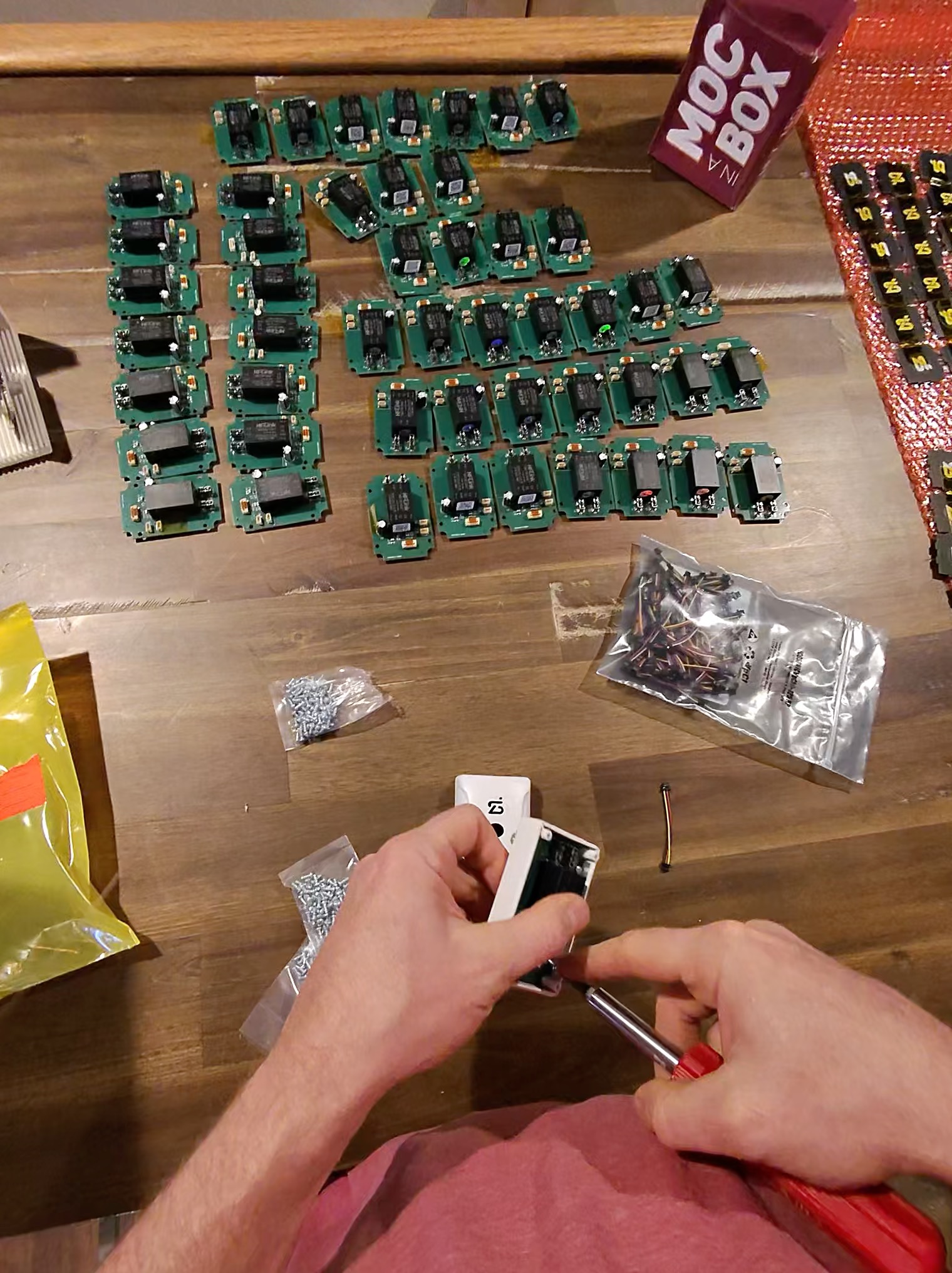

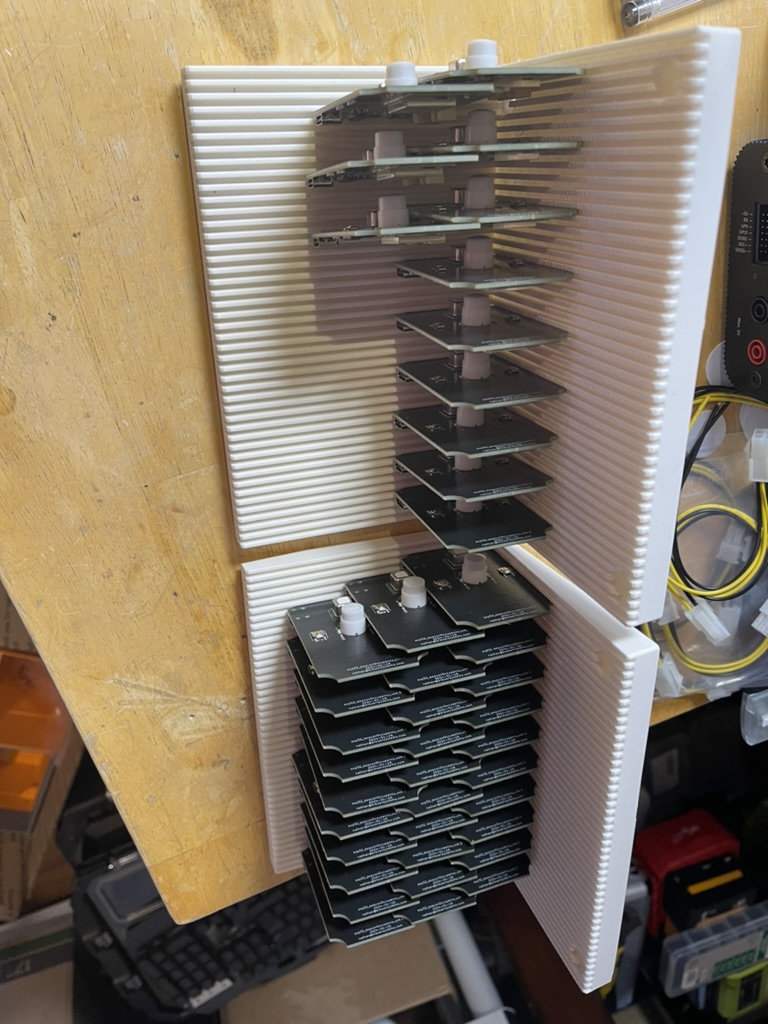

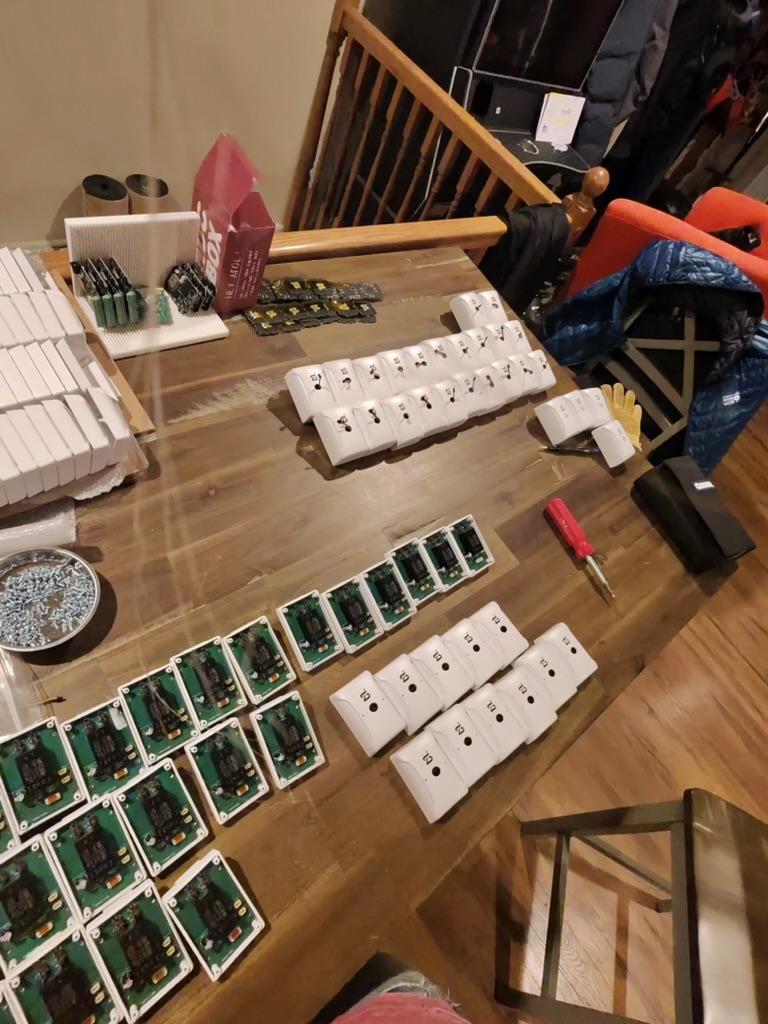

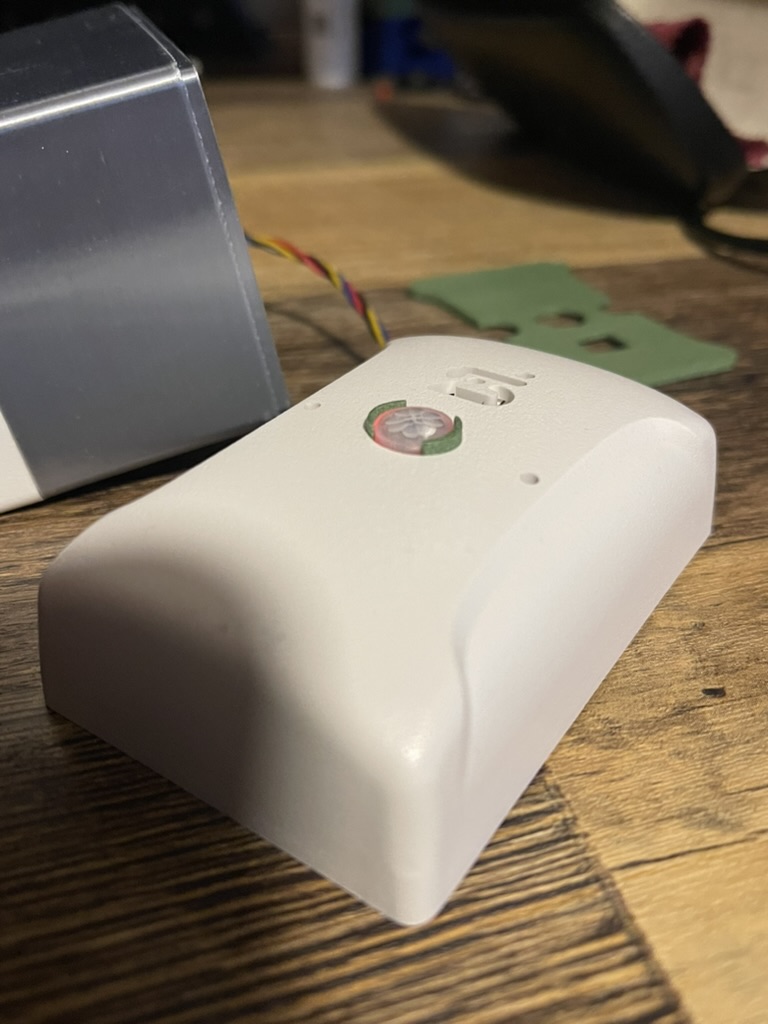

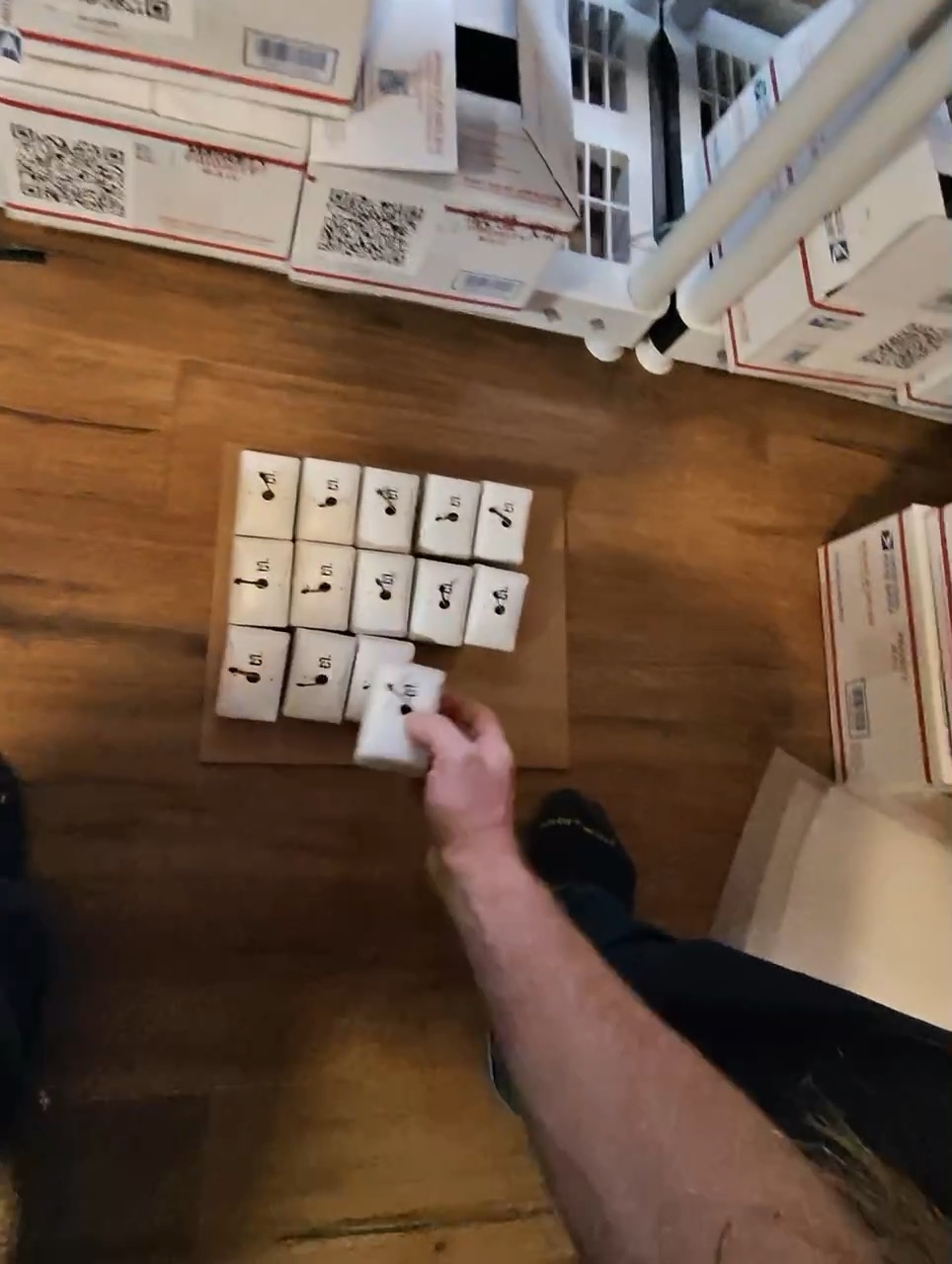

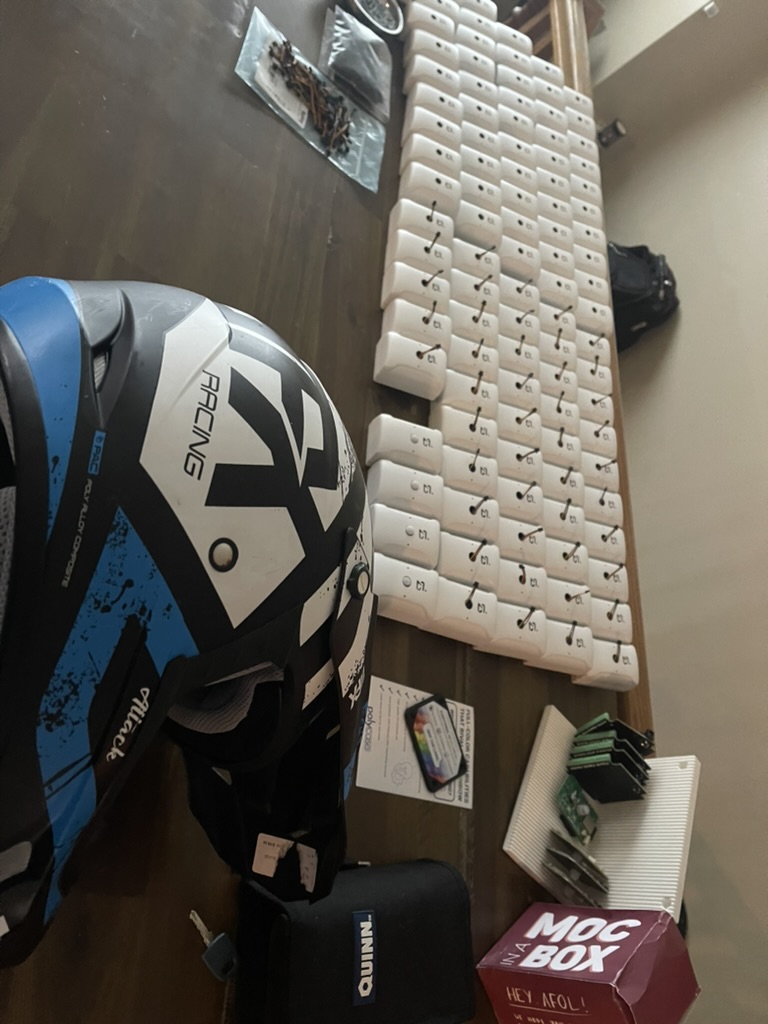

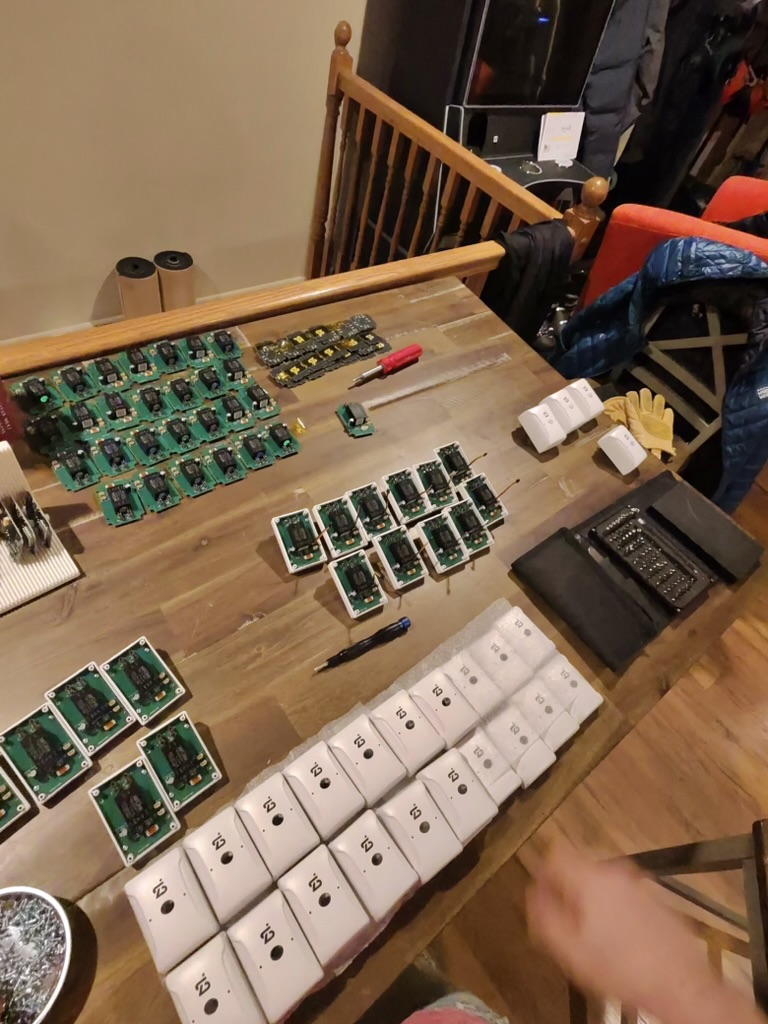

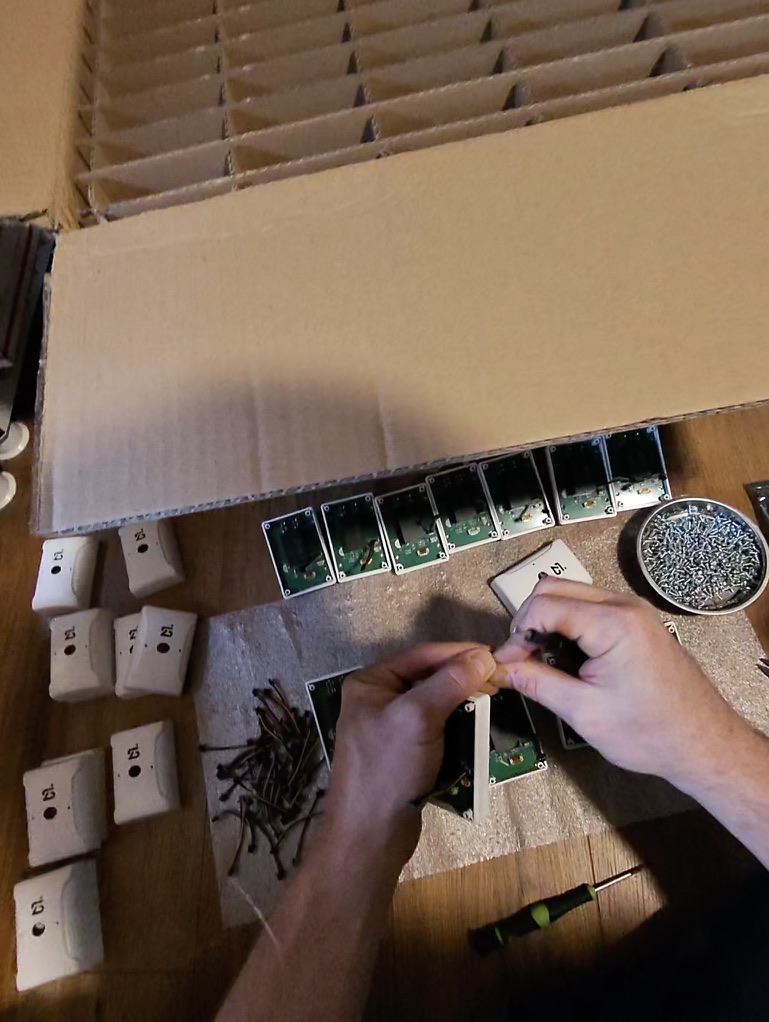

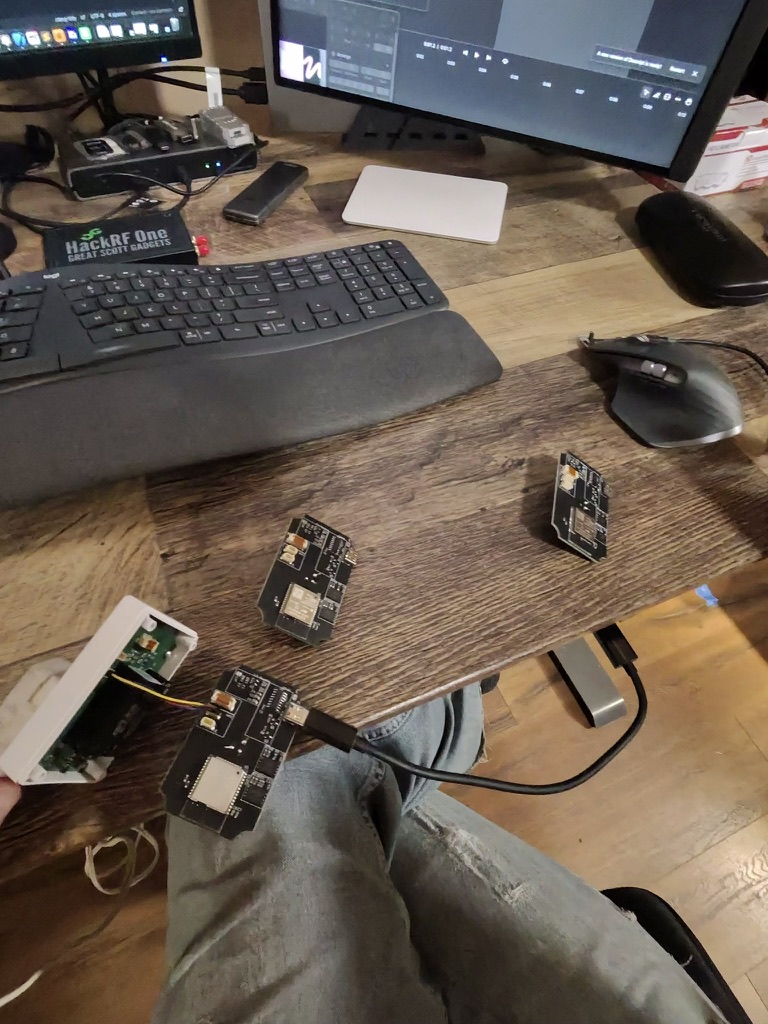

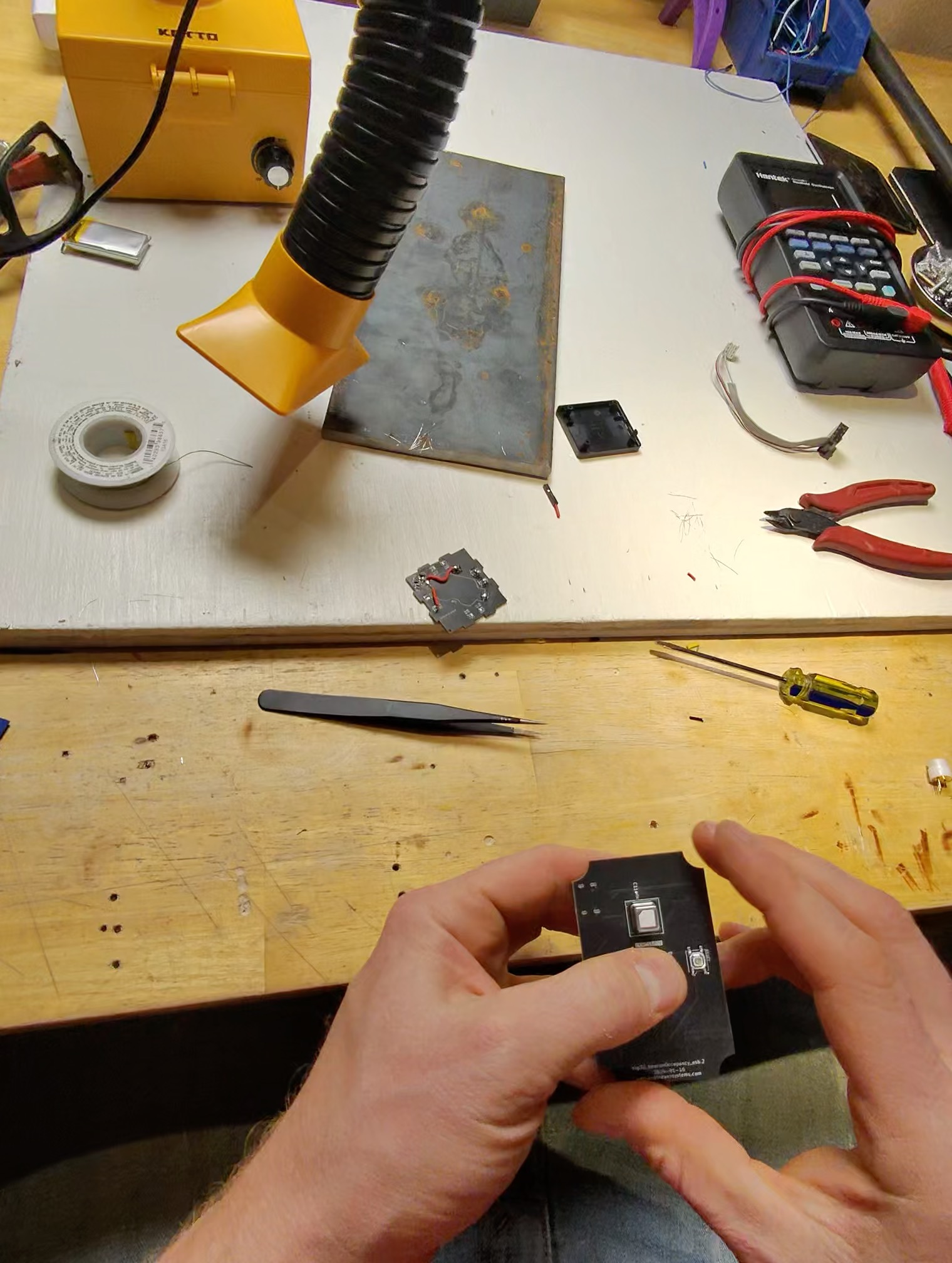

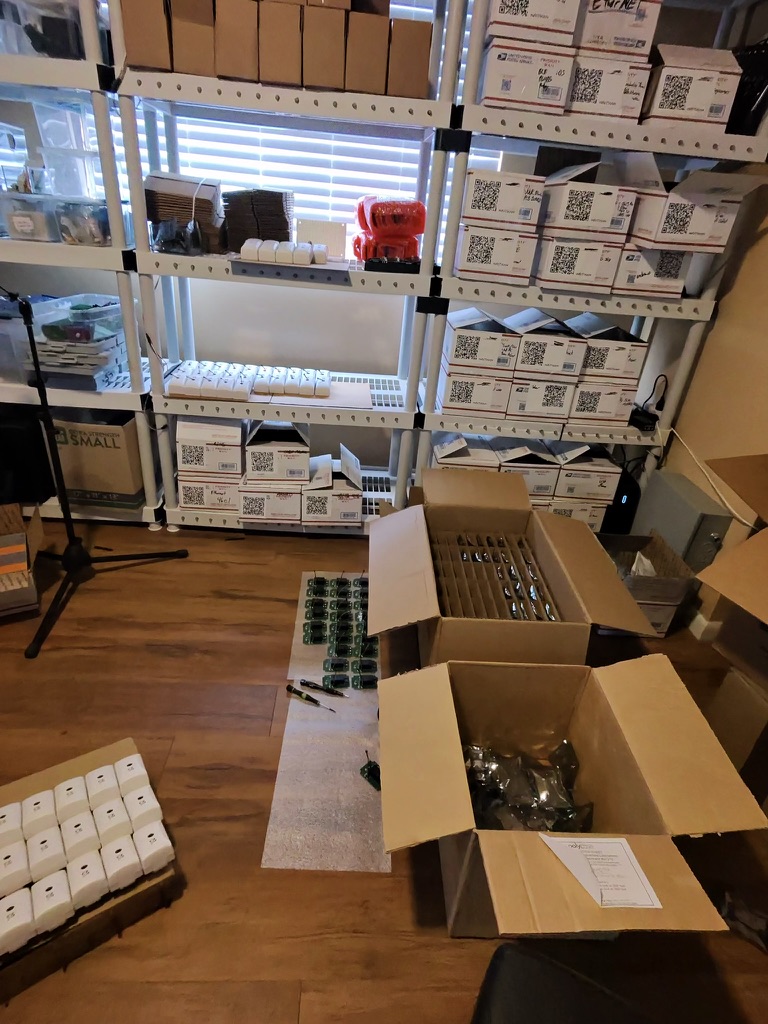

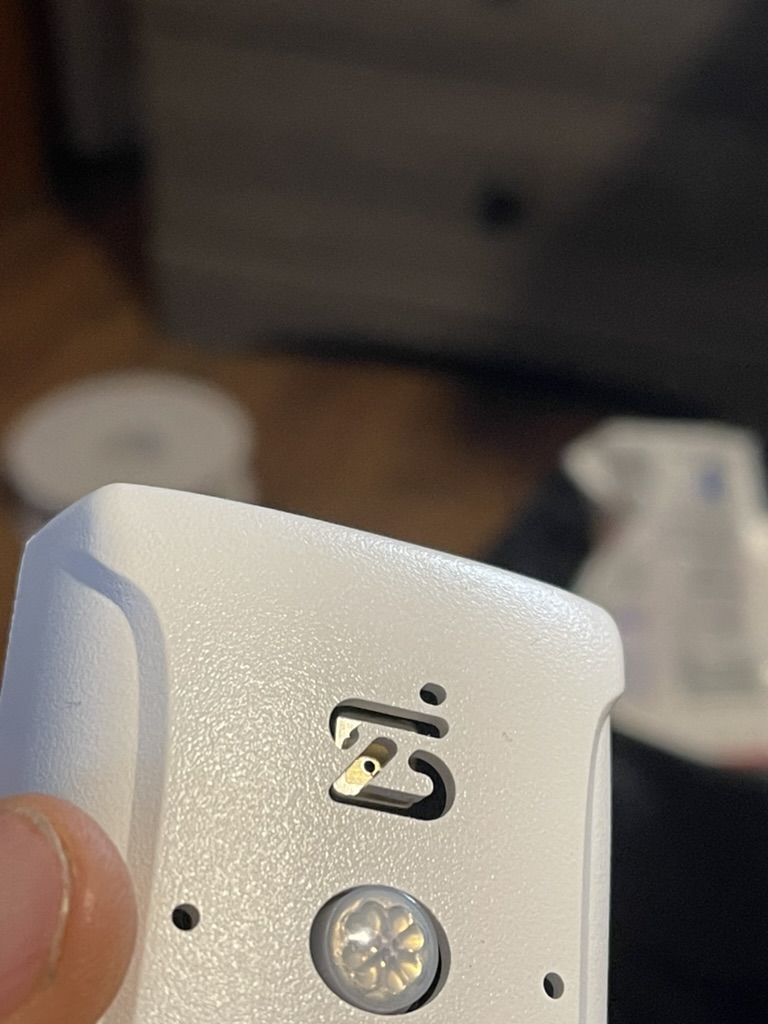

Photos
